IRS26310DJPbF
Description
The IRS26310DJPBF is a high voltage, high speed power MOSFET and IGBT driver with three independent
high and low side referenced output channels for 3-phase applications. This IC is designed to be used with
low-cost bootstrap power supplies; the bootstrap diode functionality has been integrated into this device to
reduce the component count and the PCB size. Proprietary HVIC technology enables ruggedized monolithic
construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip
function which terminates all six outputs can be derived from an external current sense resistor. An enable
function is available to terminate all six outputs simultaneously. An open-drain FAULT signal is provided to
indicate that an overcurrent or a VCC undervoltage shutdown has occurred. Overcurrent fault conditions are
cleared automatically after a delay programmed externally via an RC network connected to the RCIN input.
The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
Propagation delays are matched to simplify use in high frequency applications. The floating channel can be
used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600 V.
A DCbus sensing is provided using an external divider. Over Voltage DCbus protection is activate when
DCbus exceed an externally adjustable threshold, activating zero-vector braking mode (all Low side output
turn-on, all High side output-turn-off).

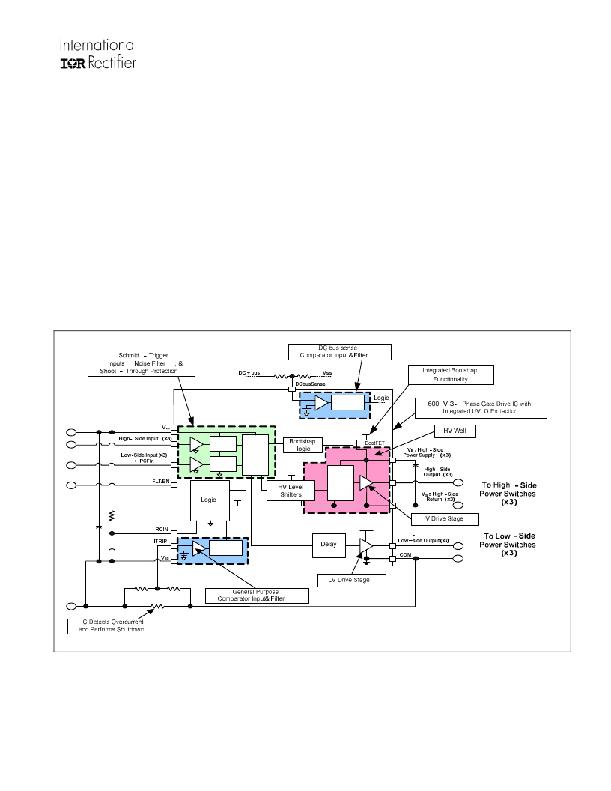

Simplified Block Diagram
www.irf.com
3
? 2007 International Rectifier
